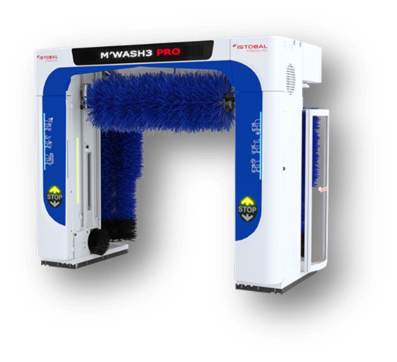

A wash and dry rollover consisting of 2 vertical brushes and 1 horizontal brush (also available with 4 vertical brushes and 1 horizontal brush), with an enhanced control and wash quality. More technologically advanced thanks to its latest generation software, with a modern and innovative design and greater wash optimization. New styling details that enhance the perception of quality and a user-focused design. Additionally the new M´WASH3 PRO rollover incorporates doors sloping towards the center of the sidewall to increase visibility and a slimmer central fairing to give the user a greater sense of spaciousness in the machine.

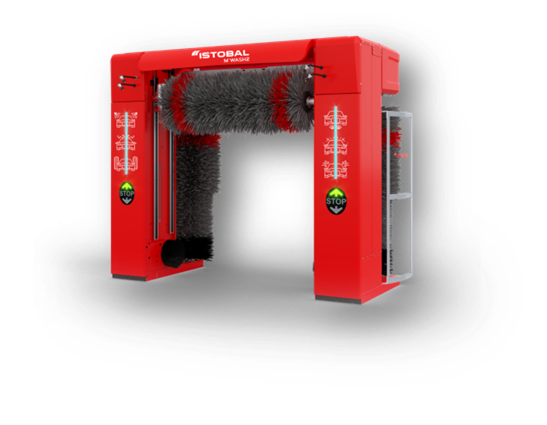

It is a rollover and drying system consisting of 2 vertical brushes and 1 horizontal brush controlled by frequency inverters for greater wash quality and control. More flexible thanks to multiple configurations, with a compact, state-of-the-art design and total versatility. This marks a milestone in the new generation of ISTOBAL M’WASH rollovers. The most efficient and connected technology for every need. With an updated look, the new M’WASH2 features new front and back fairings with softer, more rounded shapes. With regard to LED lighting, attention to detail has been paid in both the pictogram and the positioning area, following the style line of the entire M’WASH series. New higher-level control automation and increased performance. Up to 15 programs can be set. The operating station enables all external machine components to be connected. The flexible programming system fitted as standard with ISTOBAL M’WASH rollovers allows each wash program to be customized easily and intuitively. Precise wash control thanks to the 10° inclination of the side brushes. The tilt system maintains control in both tilted and vertical positions. Robust and compact construction, available in four heights and two different wash widths.

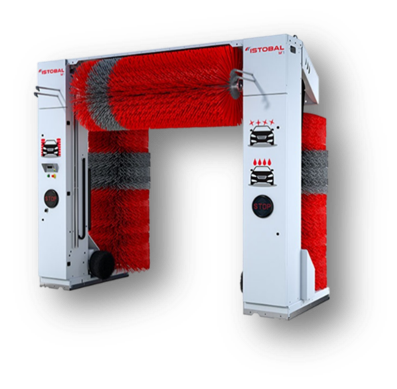

Istobal’s most competitive model is surprising in many ways: aesthetics, mechanics and function. This model is intended to offer a quality simple wash. Designed with pure lines on the outside, the model is highly reliable technology wise. The new arrangement of the nozzles, used for the application of shampoo and water during the rinsing step, maximizes performance, minimizes consumption and optimizes product application. PLC with unified modules and flexible configuration possibilities for optional extras. The use of the Profinet communication protocol enhances communication and reduces machine wiring and connections. Command post allows all of the machine’s external optional extras to be connected. It can be external to the structure or built-in. A galvanized compact structure designed to optimize the assembly of all parts and components, with a solid but attractive appearance. Complete overlapping scrub by vertical brushes with variable speed drive-controlled travel.

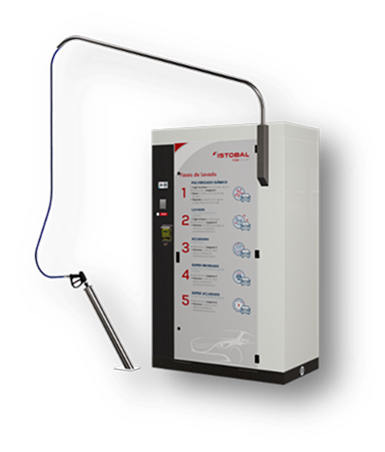

When space is at a premium, ISTOBAL offers you the n’joywash pack jet wash series, developed for single bay jet washes, the n’joywash pack has all the necessary features to ensure a top quality wash and is designed to completely satisfy your customers and maximize your profits. The n’joywash pack combines the advantage of a compact unit size for all those smaller spaces, with outstanding performance, ensuring that you receive maximum returns for the minimum of investment. In addition, the n’joywash pack is available with either Buy-Time or Multi Program configurations as standard. Professional high-pressure manual wash for companies with limited potential for a car wash system and restricted installation space.

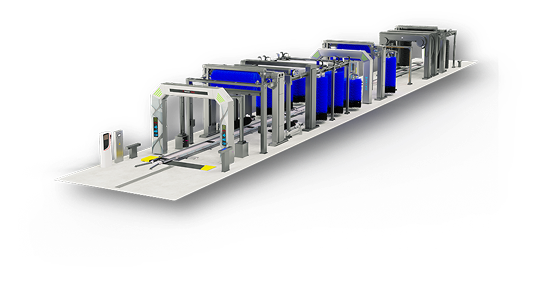

The equipment stands out for its speed, robustness, efficiency and safety, as well as its adaptability to different spaces and washing needs. The vehicle is transported by chain or belt, passing through the washing and drying phases along the track. Available in a variety of configurations, with multiple options and systems for washing, waxing and drying. Available in standard lengths ranging from 12.5m to 32m and up to 50m. It allows different washing and drying modules as well as the maximum number of features and options in the minimum space (arches, types of brushes, washing with high-pressure without contact, etc.). With options such as: RGB lights, vinyl with different images available, Infinite Mousse arch (curtain or rain effect) and flat conveyor belt. Thanks to washing with linear vehicle tracking, double rear scrubbing and rear-view mirror detection at high speeds. Design focused on reducing water and electricity consumption. Quick replacement of equipment and adaptable to existing civil works, thanks to the self-supporting piping system and control panels on the structure.

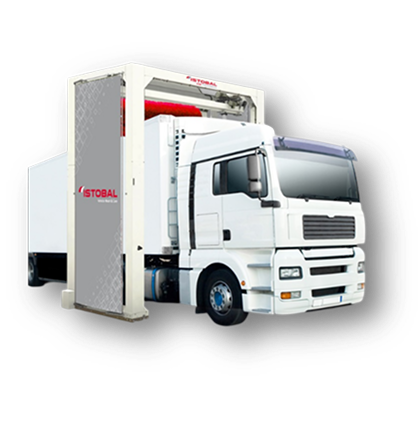

The latest evolution of the Istobal’s industrial vehicle car wash incorporates an optimized redesign of the hydraulic circuit that provides optimum washing with up to 25% less water consumption and using up to 6% less energy. The sectorization of the water circuit for brush rinsing, which allows the water flow to be cut off to the horizontal brush while it is not working, together with the resizing of the main water supply, enables optimization of the main water pump. This is the most flexible industrial vehicle car wash on the market, capable of covering all segments, from vans to irregular vehicles, and other vehicles with special characteristics. A flexible configuration with up to 31 programs and functions, which the customer can freely select, a touchscreen control panel and various types of connections for supplying the rollover: by chain, loops or via a fixed or pendulum post. The structure of the rollover can be customized in 23 different colors and the polyethylene brushes come in 4 colors to adapt to any brand image.

The equipment stands out for its speed, robustness, efficiency and safety, as well as its adaptability to different spaces and washing needs. The vehicle is transported by chain or belt, passing through the washing and drying phases along the track. Available in a variety of configurations, with multiple options and systems for washing, waxing and drying. Available in standard lengths ranging from 12.5m to 32m and up to 50m. It allows different washing and drying modules as well as the maximum number of features and options in the minimum space (arches, types of brushes, washing with high-pressure without contact, etc.). With options such as: RGB lights, vinyl with different images available, Infinite Mousse arch (curtain or rain effect) and flat conveyor belt. Thanks to washing with linear vehicle tracking, double rear scrubbing and rear-view mirror detection at high speeds. Design focused on reducing water and electricity consumption. Quick replacement of equipment and adaptable to existing civil works, thanks to the self-supporting piping system and control panels on the structure.

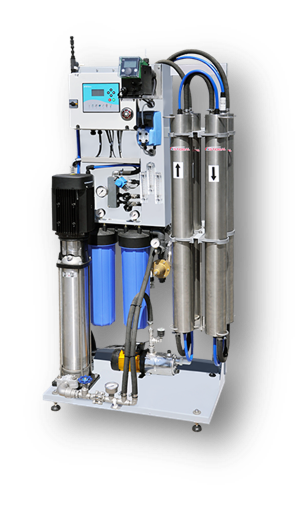

Models 4DA4000, 4DA5000 and 4DA6000 by ISTOBAL provide high quality water for the rising steps of the car wash process. With salinity levels below 50 ppm, a stain-free wash can be ensured. Equipment features:

• Production flexibility (models 4DA5000 and 4DA6000). Thanks to the modular design, up to 4 membranes can be fitted in cases of greater demineralized water demands as a result of a facility extension. The inclusion of membranes may require pre-treatment to be extended.
• Models 4DA4000 and 4DA5000 come in a GRP container, and model 4DA6000 in a stainless steel one.
• Flexibility in regulation. Equipment regulation can be adapted to the facility’s needs and the quality of the water to treat, this ensuring optimum production and conversion levels.
• Easy configuration and maintenance. Thanks to the new control panel, menus and messages are readily accessible.
• Pre-treatment optional extras. Depending on the quality of the water to treat, different pre-treatments are necessary. ISTOBAL recommends to carry out previous testing.
• In any case, lime scale must be removed and buildups prevented. Istobal offers the possibility of installing a water softener or a scale preventer unit.

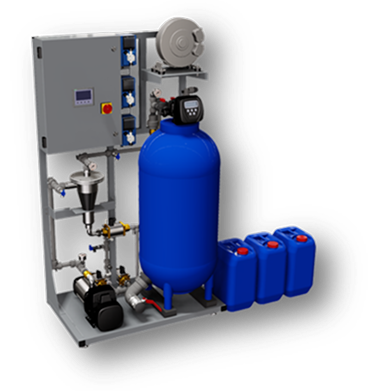

The recycler equipment has been designed for treating and reusing water from car washing (rollovers, tunnels and jet wash installations). The main component is the zeolite filter. Between 1 and 3 zeolite filters are installed depending on the flow rate of water to treat. The quantity of water to be treated on a facility depends on the type of machine (rollover, tunnel, etc.), and the optional extras installed (under chassis wash, high pressure wash, etc.). Where several wash machine are installed, such as high throughput tunnels, a study of consumption is needed. Zeolite filters, and all optional extras, are supplied fitted in a rack, so that assembly is much easier, avoiding having to make connections between devices in the washing facility. It is a “plug & play” system, where only the water input and recycled water outlet connections have to be made.

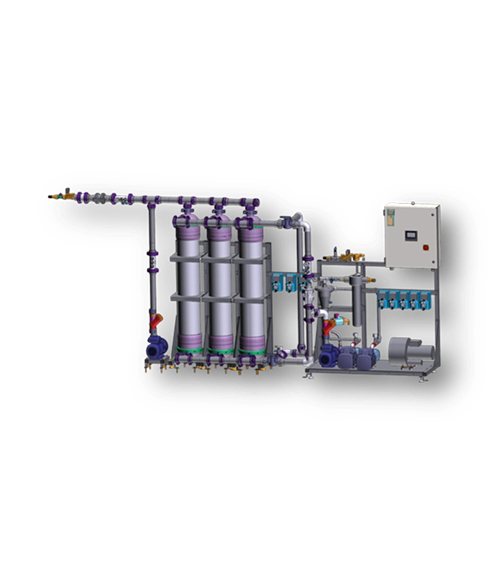

Istobal achieves zero water disposal in the car wash thanks to its pioneering biological recycler with ultrafiltration system, which recycles up to 100% of the water in each car wash in its most advanced version. It is the first biological cleaning and recycling equipment capable of treating 100% of the water from the vehicle’s exterior wash and obtaining the highest quality for its later reuse in all wash stages, including osmosis in the final finish, where fresh water is traditionally used. Suitable for car, bus, tram and truck wash areas, this innovative water recycler saves on average 220 liters of water per car wash (300 liters per bus, 870 per train and 1160 per truck wash) by reusing 100% of the water. The new Ultra-Filtration Biological Recycler is a modular, versatile and compact unit that is easy to install. It is also a fully automated, connected recycling system that allows remote monitoring for better maintenance. It features a touch-screen control panel for flow control, error control, display of accumulation tank and chemical levels, as well as recycling rate, among other features.

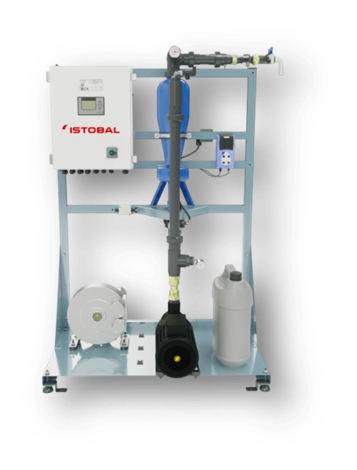

This treats 100% of the incoming water, using recycled water during the initial washing phases in gantry and tunnel systems, achieving up to an 80% reduction in fresh water consumption during an automatic wash. With a focus on sustainability, it represents a significant step towards conserving vital resources and improving operational efficiency in the industry. The equipment consists of a “plug & play” system, designed for a treatment flow rate of 5 m³/h and 10 m³/h (recycling capacity for up to 3 wash gantries operating simultaneously). Hidro Cyclone recycler offers a wide range of optional features that enhance the quality of the treated water, extending the lifespan of the washing equipment and improving the final quality of vehicle washing.
